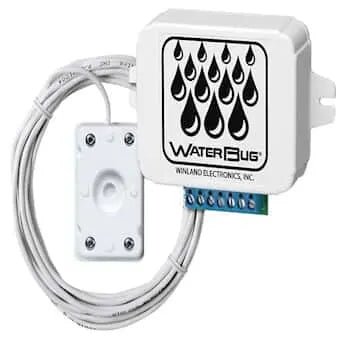

WaterBug WB200 includes bridge and one water detecting sensor

WaterBug WB200 includes bridge and one water detecting sensor

WaterBug® 200 Unsupervised (12 or 24 VAC or VDC) [Includes one surface sensor, model number W-S-U]

Includes a WaterBug Bridge and Sensor, up to 6 Sensors within 100 feet of bridge can be connected.

The WaterBug® 200 is a water detection device that detects the presence of water thru smart sensor contacts and relays. Water is the number one cause of damage to residential and commerical properties.  WaterBug® sensors activate the alarm when a conductive bridge is formed between two contacts. Protect your assets with the WB200.

• Current Draw (Resting): 12, 24 VDC @ 35mA 12, 24 VAC @ 100mA
• Current Draw (Alarm): 12, 24 VDC @ 35mA 12, 24 VAC @ 100mA
• Operating Range: Console and probe 32 to 140 F (0 to 60 C)
• Output: 1 Form C Relay (N.O./N.C.); 1 Amp @ 30 VDC, resistive; 1 Amp @ 24 VAC, resistive
• Probe Included: 1 Standard surface probe unsupervised (W-S-U)
• Max distance between probe/console: 1-2 probes; max 200 (61 m) 3-6 probes; max 100 (30.5 m) per probe
• Console dimensions: 4.1 x 2.36 x 1.18 (10 x 6 x 3 cm) (with anges)
• Probe dimensions: Surface (W-S-U) 2 x 3 x 0.88 (5.1 x 7.6 x 2.2 cm); Under Carpet (W-UC-U) 2 x 3 x 0.18 (5.1 x 7.6 x .5 cm)
• Weight: 2.4 oz (0.7 g)

Features:

• Console includes one standard unsupervised surface sensor (W-S-U - Global#B508520)
• Console accepts a total of 6 sensors (W-S-U - Global#B508520 & W-UC-U - Global#B508518)
• Sensors can be located up to 100' (30.48 m) away from the unite for wide area protection
• Can be used to detect an absence of water
• Hardwire powered console unit
