Von Duprin 99EO 4-Foot Heavy-Duty Rim Exit Device
The Von Duprin 99EO 4-foot rim exit device is a heavy-duty, Grade 1 panic bar for high-traffic commercial and institutional doors. This exit-only model features a surface-mounted rim latch, wide-stile pushpad, grooved 99 Series mechanism case and clear anodized aluminum finish.
It is designed for demanding openings in schools, hospitals, government facilities, offices, retail buildings and other commercial properties where durable panic hardware and reliable free egress are required.
Exact configuration: Von Duprin 99EO 4 628 / US28 — 48-inch device, exit only, clear anodized aluminum.
Key Features
- Heavy-duty Von Duprin 99 Series rim exit device
- ANSI/BHMA A156.3 Grade 1 certified
- UL listed for panic exit hardware
- EO exit-only function, ANSI Function 01
- Four-foot / 48-inch device for compatible commercial doors up to 4 feet wide
- 628 / US28 clear anodized aluminum finish
- Wide-stile pushpad with grooved mechanism case
- Surface-mounted rim design with single-point latching
- Non-handed for compatible left- or right-hand doors

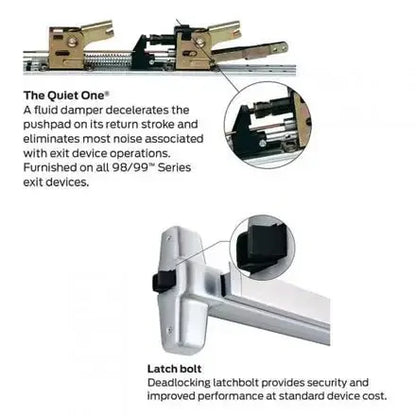

- Deadlocking rim latchbolt with approximately 3/4-inch throw
- Standard hex-key dogging
- Field sizable within the manufacturer's permitted limits
- Designed for high-use and high-abuse environments
Specifications
| Manufacturer | Von Duprin |
|---|---|
| Series | 99 Series |
| Model / MPN | 99EO 4 628 |
| Device type | Rim exit device / panic bar |
| Function | Exit only, ANSI Function 01 |

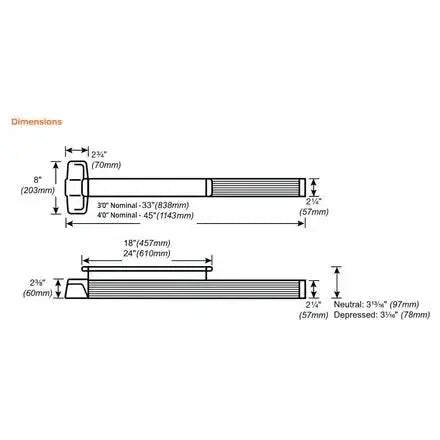

| Device length | 4 feet / 48 inches |
| Finish | 628 / US28 clear anodized aluminum |
| Handing | Non-handed |
| Stile type | Wide stile |
| Dogging | Hex-key dogging |
| Latch | Deadlocking rim latchbolt |
| Rating | Panic rated; non-fire-rated configuration |
| Outside trim | Not included; sold separately |
What Is Included?
- Von Duprin 99EO 4-foot rim exit device in 628 / US28 aluminum
- Standard rim strike
- Standard installation fasteners
- Hex dogging key
Outside trim, keyed cylinders, electric latch-retraction equipment, access-control components and installation are not included unless separately stated in the order.
Important Compatibility Information
This is an exit-only, non-fire-rated panic device. Do not use it on a labeled fire-door opening that requires fire exit hardware. Those openings generally require a 99EO-F configuration and compatible listed components.
Before ordering, confirm the door width, thickness, material, frame preparation, strike application and exterior-entry requirements. Double-door applications can require a compatible removable mullion or a different exit-device configuration.
Frequently Asked Questions
What does EO mean?
EO means Exit Only. Pressing the interior pushpad retracts the latch for free egress. Exterior operating trim is not included.
Is this Von Duprin 99EO fire rated?
No. This configuration is panic-rated hardware. A labeled fire-door opening generally requires the corresponding 99EO-F fire exit device and compatible listed components.
Can it be installed on a left-hand or right-hand door?
Yes. The standard rim device is non-handed and can be used on either handing when the opening and door preparation are compatible.
Can the four-foot device be shortened?
Yes. It is field sizable within Von Duprin's permitted limits. Verify the opening dimensions and manufacturer installation template before cutting.
Does it include exterior lever trim?
No. Compatible Von Duprin outside trim must be purchased separately if keyed or controlled exterior entry is required.
What does hex dogging do?
Hex dogging holds the latch retracted so the door can operate in push-pull mode during permitted periods. Dogging is not used on fire exit hardware.
Can it work with an access-control system?
Yes, when paired with the correct electrical option or compatible retrofit hardware, power supply and system design. Contact Central Security before ordering for card access, electric latch retraction, request-to-exit monitoring or automatic-door integration.
Need Help Confirming Compatibility?
Commercial exit hardware must match the door, frame, life-safety requirements and desired entry function. Contact Central Security with door and frame photos, opening dimensions and the required exterior operation if you need help confirming the correct configuration.
