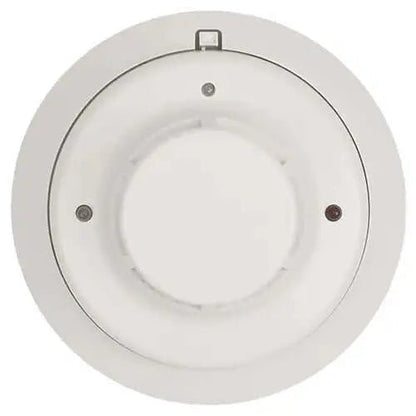

Fire Device System Sensor 2WT-B Smoke & Thermal 2 Wire

Fire Device System Sensor 2WT-B Smoke & Thermal 2 Wire

The 2WT-B is a 2-wire, photoelectric i3 smoke detector with a 135°F fixed thermal sensor.

Standard conventional 2 wire System Sensor,

Specifications

• Alarm Contact Ratings: 0.5 A @ 30V AC/DC
• Alarm Current: 20mA max. @ 12V, 23mA @ 24V
• Detection: Photoelectric
• Dimensions: 2.0" (51mm) H x 5.3" (127mm) Dia.
• Freeze Trouble: 41°F (5°C)
• Heat Sensor: 135°F (57.2°C) fixed
• Maximum Ripple Voltage: 30% of nominal (peak to peak)
• Operating Humidity Range: 0% to 95% RH, non-condensing
• Operating Temperature Range: 32° to 100°F (0° to 37.8°C)
• Operating Voltage: 12/24 V non-polarized nominal, 8.5 min. to 35 max.
• Sensitivity: 2.5%/ft. nominal
• Standby Current: 50 µA max. avg.
• Weight: 6.3 oz. (178 g)
• Wiring Gauge: 14-22 AWG
