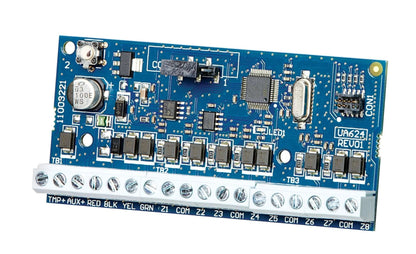

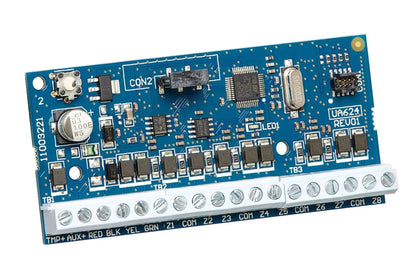

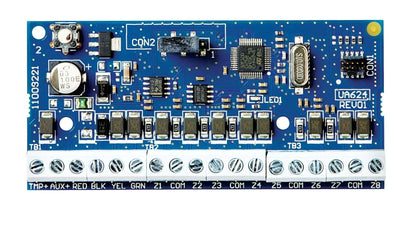

Adds 8 hardwired zones to the DSC Neo Security System
AUX power up to 125 mA (PTC protected)
This module is simple to connect up to the DSC neo security system, module

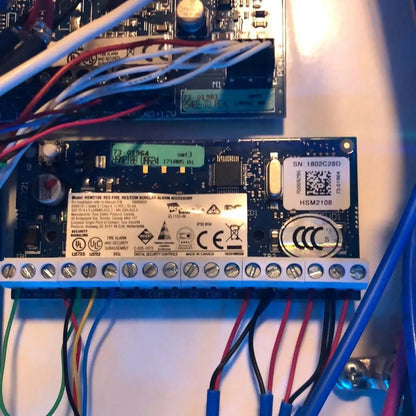

Connects to the main control like a keypad, RED, BLK, YL, GRN,
Must add module in programming after connecting, enter programming by pressing *8 then enter the 4-Digit Installer Code, go to Section 902 and Press * to Auto Enroll.
If you are planning to use more than one expansion module, it is best to connect the first expansion module up and Auto Enroll, then add the next, add them one at a time. This will allow you to control how the main control assigns hardwired zones for expansion modules you are connecting, (9-16),(17-24),(25-32), ect.
This module Requires wire from TMP to BLK*, to resolve trouble Expansion Module Fault.
Hope this make sense. Professional home and business security alarm advice, products, solutions and monitoring service. If you are a customer please make contact for more help.
