Major Manufacturing Router Template Kit - With Spacer & Router Bit to Cut HES 5000 & 5700 Door Strike

Major Manufacturing - Router Template, Router Spacer for Porter Cable Model 691 & Aluminum Cutting Bit to cut HES 5000 & 5700 Electric Strike by Major Manufacturing

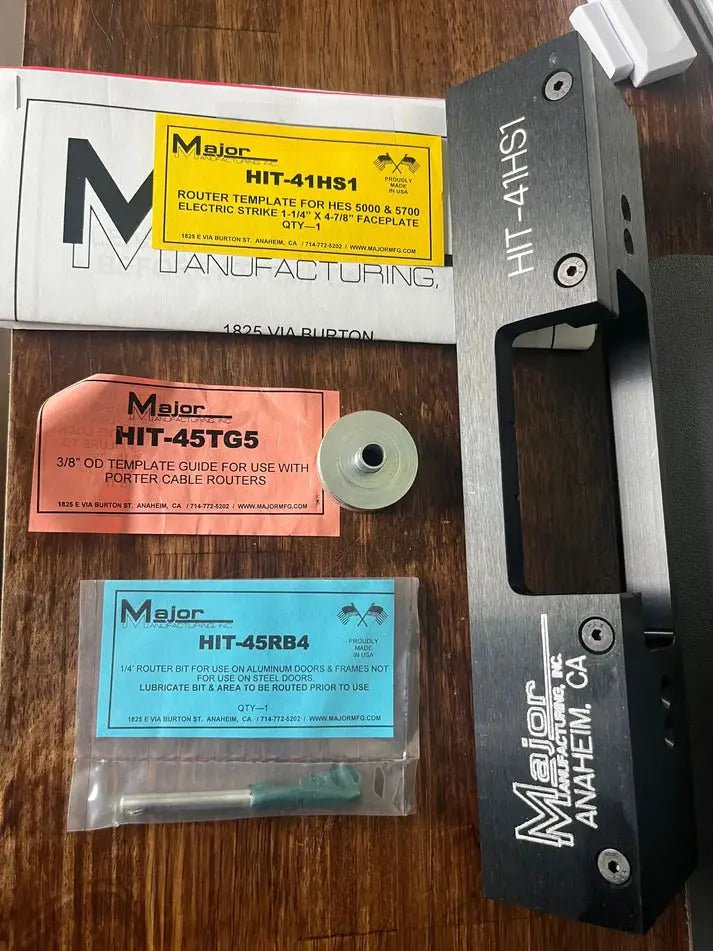

Includes Template, Router Spacer & Router Bit by Major Manufacturing router template HIT-41HS1 for HES 5000 and 5700 series templates with the 501AL faceplate option.  Faceplate size is 1 1/4" x 4 7/8" with round corners.  Mounts to door or frame with self-drilling screws (supplied).  Requires a router with a 3/8" outside diameter template guide and a 1/4" diameter bit.

Comes with 3/8" outside diameter template spacer guide for the Porter Cable Model 691 router and a 1/4" diameter aluminum cutting bit.  HIT-45TG5 and HIT-45RB4

Example of Use: Access control installation with an ASSA ABLOY HES 5000C Electric strike installation on commercial tilt wall facility that has an aluminum trim exterior glass door.  Requires the dead lock and the interior lock knob to be removed.  Dead lock is replaced with an Adams Rite ASSA ABLOY 4510 Deadlatch.

The interior lock knob is replaced with the Adams Rite ASSA ABLOY 4590 Stainless Paddle configured PUSH to exit. The existing lock cylinder & key will continue to unlock door on the outside of the facility with the new deadlatch. The HES 5000C electric strike is cut into door with a high-speed router, a special bit, cutting paste and custom jig.
