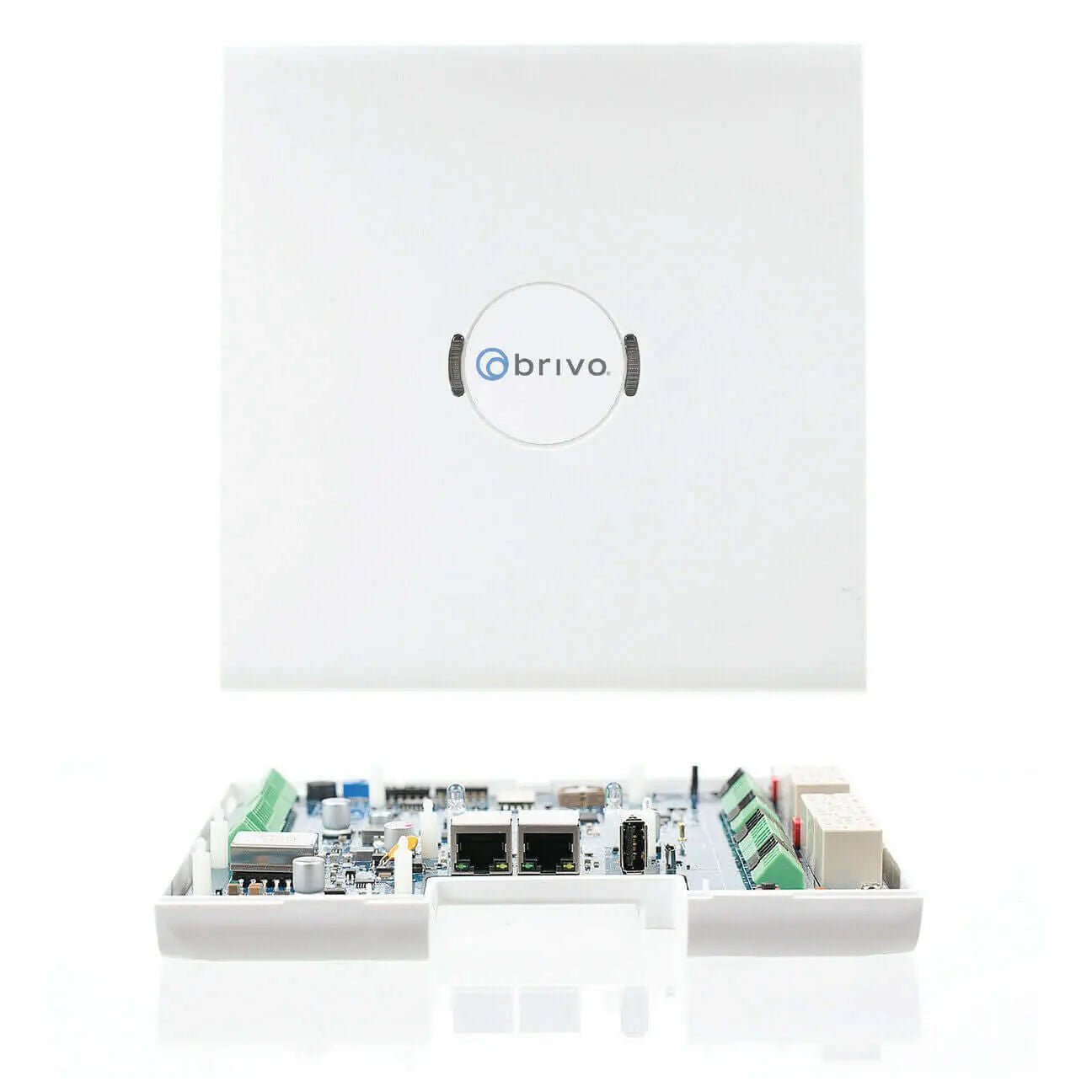

BRIVO ACS-300 Two Door Cloud Controller

BRIVO 2 Door Cloud Access Controller

Requires Brivo Onair Service

BRIVO CONTROLLER The Brivo is our next generation of Ethernet/Wi-Fi controller designed to support components of the Brivo Onair®

Building blocks for Brivo cloud-based and on-premise building security Brivo’s controllers are the supporting components of your Brivo access control platform. Used for Brivo Onair accounts.

• IP based access control and alarms
• Supports up to 2 card readers per controller
• Supports Brivo Mobile Pass credentials
• Host Communication via Ethernet and/or Wi-Fi
• Encrypted storage and communications
• Power over Ethernet (PoE+)
• Host authentication via digital certificates
• Supports Wiegand and OSDP compatible readers
• Supports select wireless door locks

Maximum number of card readers 2 Event history 60,000 events (FIFO) offline from host Input points 8 inputs per controller On board; (2) door position inputs; (2) Request to exit inputs; (4) Auxiliary inputs Output relays 6 outputs per controller (2) non-latching wet (12V, 350mA) or dry (6A @ 28VDC) selectable door lock relays, plus (4) general purpose dry relays (6A @ 28VDC) Authentication and encryption Both ACS300 models use TLS1.2+, with AES256 encryption and SHA256 certificate with a 4096 bit key length ACS300-A supports FIPS140-2 validated encryption module with optional license per controller Max power consumption 12VDC @ 2.5A peak with all outputs at maximum allowed current limits. Card reader inputs (2) Wiegand Ports or (1) RS-485 Port for (2) OSDP Readers Temperature and humidity range Operating temp: 32o F to 125o F, (0o C to 49o C) Humidity; Max 85% non-condensing Included components (2) MOV surge suppressors Input Power Recommended: Power over Ethernet (PoE+) from network switch or PoE+ injector Alternate: 12VDC, 2.5A - power supply (not included) Output Reader Power The controller can also supply power to the card reader devices: Each Wiegand Card Reader Port can supply 350mA @ 12VDC RS-485 Port can supply a total of 350mA @12VDC Enclosure dimensions 7.4”W x 7.5”H x 1.5”D (187mm x 190mm x 40mm) Host communications Ethernet 10/100 Mbps or WiFI IEEE 802.11 b/g/n Compliance CONTROLLER SPECIFICATIONS Access Control UL294/ | | Part 15 Class A Compliant | Compliant
