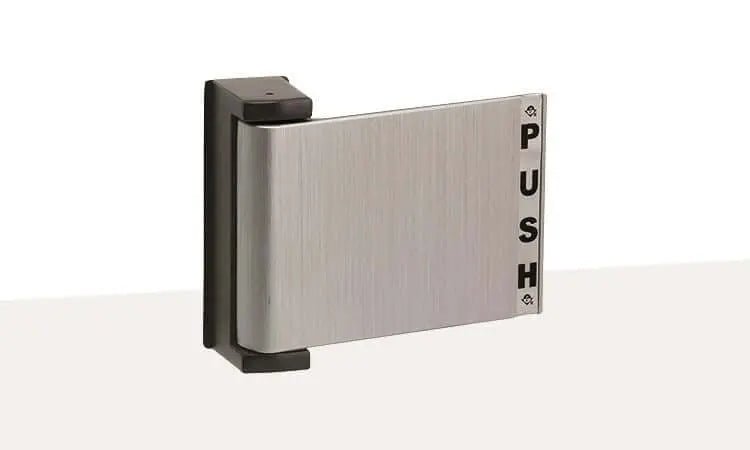

ASSA ABLOY Adams Rite 4590 Deadlatch Paddle
ASSA ABLOY Adams Rite 4590 Deadlatch Paddle
ASSA ABLOY Adams Rite 4590 Deadlatch Paddle
The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. Operate with a simple push or pull.
Function:
An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings. Compatible with any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Deadlatch, or 2190/2290 Interconnected Deadbolt/ Deadlatch.
Operation:
Available in four configurations: push left, push right, pull left, and pull right.
Features:
Paddle: Extruded aluminum.
Escutcheons: Zinc alloy with black finish. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Deadlatch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder set screw, plug is also rigidly tied to escutcheon by hardened steel pins.
Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug.
Shipping weight: 1-1/2 lb [0.68 kg].
Options:
• First dash number specifies operation, handing and compatible latch. If required, use second dash number to specify non standard units for doors thicker than 1-3/4" [44.5 mm]. Please see configuration table or contact factory for more information.
• Available in choice of 313 Dark bronze anodized, 335 Black anodized, 628 Clear anodized.
