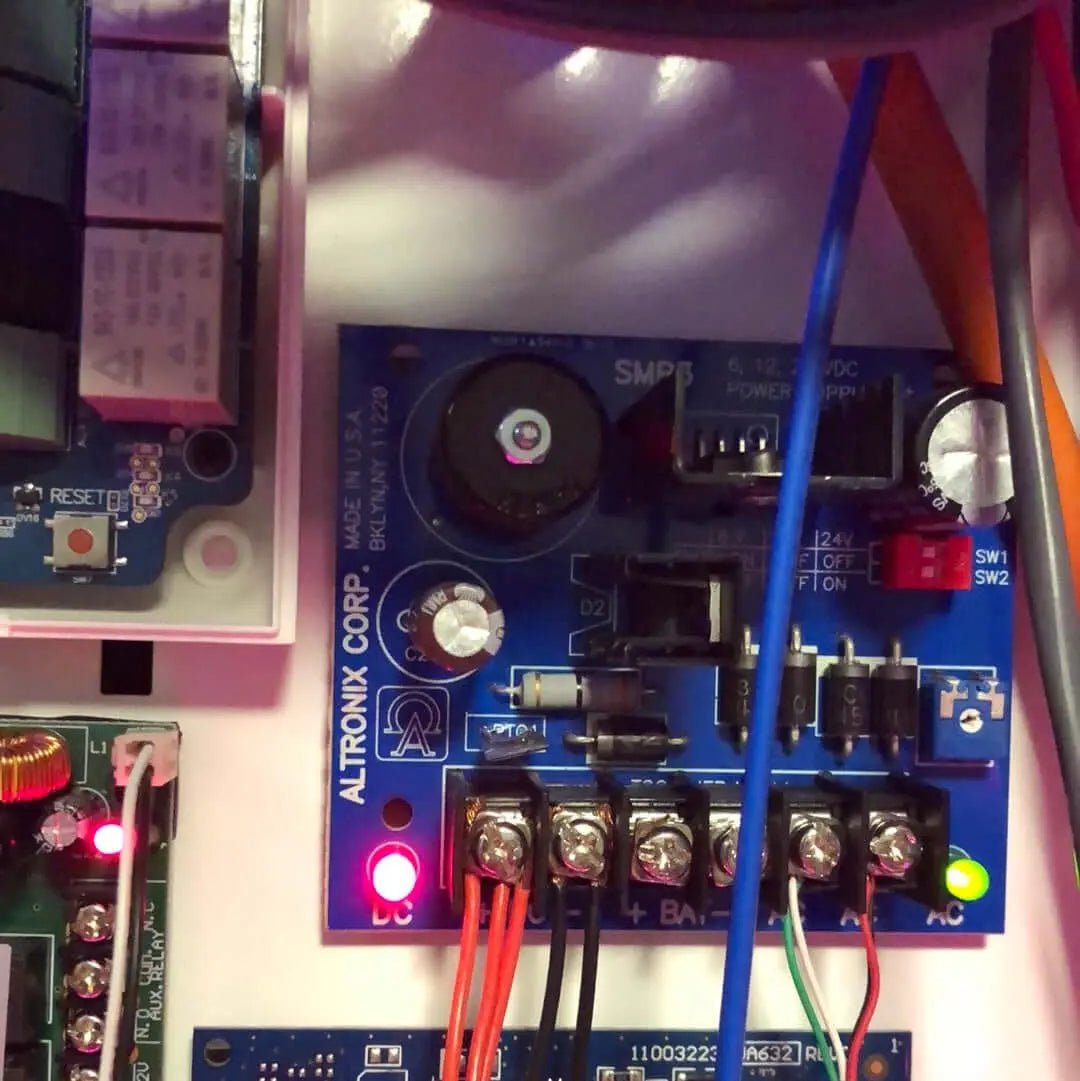

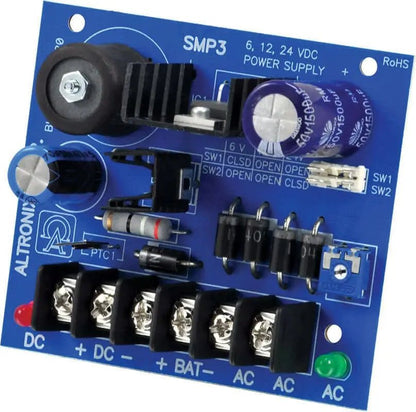

Altronix SMP3 Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 24/28VAC, Board

Altronix SMP3 Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 24/28VAC, Board

Highly Recommended Power Supply - Comes with Lifetime Warranty by Altronix

Avenger Security has never had this power supply fail in security configuration.

The best low voltage power supply that can be used for almost anything.

Altronix SMP3 Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 24/28VAC, Board.

Altronix SMP3 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

• Input

  • 16VAC to 28VAC.

• Output

  • 6VDC, 12VDC or 24VDC selectable output.
  • 2.5A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Battery short circuit protection (circuit breaker).

• Visual Indicators

  • AC input and DC output LED indicators.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr (approx.):

    • 6VDC: 8 BTU/Hr.
    • 12VDC: 15 BTU/Hr.
    • 24VDC: 31 BTU/Hr.

  • System AC input VA requirement:

    • 6VDC/12VDC: 55.2VA.
    • 24VDC: 115VA.

• Features

  • Extremely compact design.
  • Includes battery leads.
  • Snap Track compatible (order Altronix model number ST3).

• Dimensions (approximate):

  • 3"W x 3.5"L x 2"H (76.2 mm W x 88.9 mm L x 50.8 mm H).

  Weights (approximate):

  • Product Weight: 0.25 Lbs. (0.113 kg).
  • Shipping Weight: 0.35 Lbs. (0.158 kg).

Installation Instructions - Click Here
