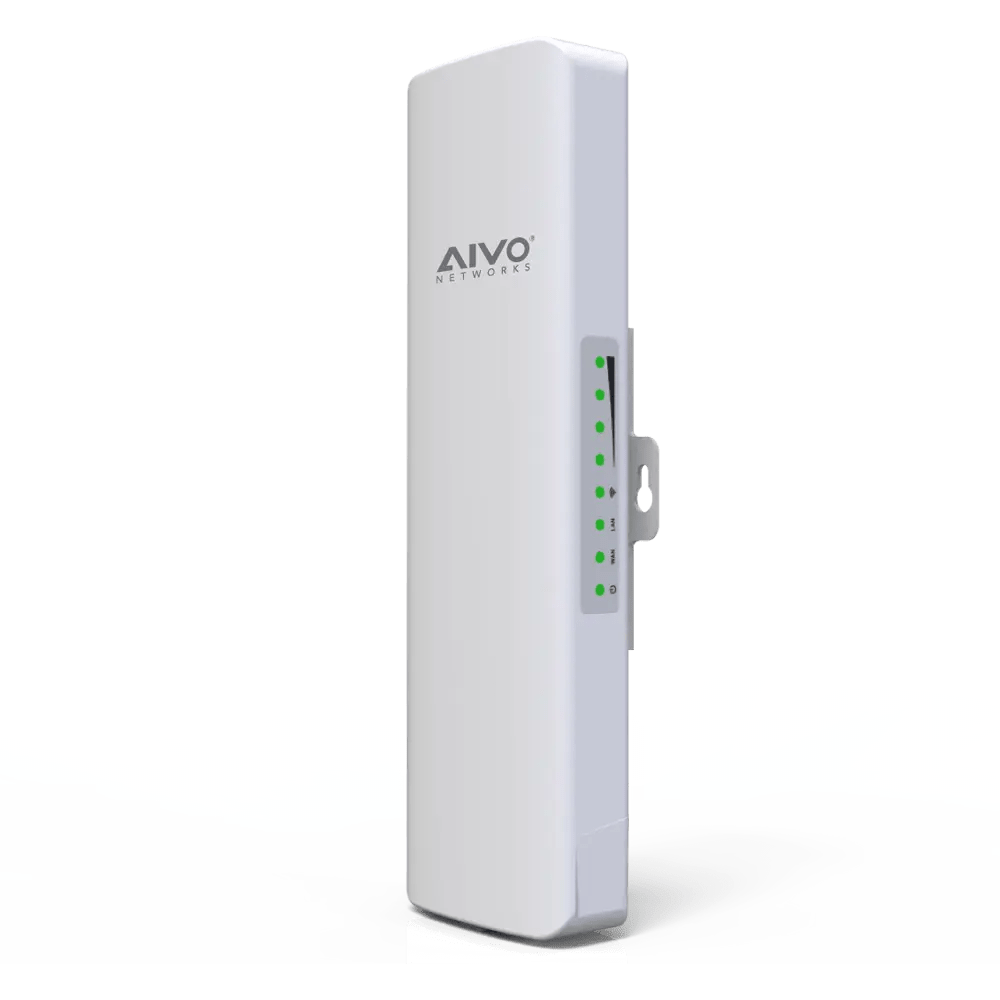

AIVO ANCP3005Q AVYCON HIGH POWER INDOOR/OUTDOOR CPE 5.8GHz UP TO 300Mbps
AIVO ANCP3005Q AVYCON HIGH POWER INDOOR/OUTDOOR CPE 5.8GHz UP TO 300Mbps
Regular price
$120.00 USD
Regular price
Sale price
$120.00 USD
Unit price
/
per
Couldn't load pickup availability
AIVO ANCP3005Q AVYCON HIGH POWER INDOOR/OUTDOOR CPE 5.8GHz UP TO 300Mbps
Highly recommended by Avenger Security team, way easier to configure than Ubiquity Point to Point, better chipet configuration. Send camera signals miles line of sight.
- High Power Indoor/Outdoor CPE with Qualcomm® Atheros Chipset - Range up to 6 miles away with line of sight
- Can be used to connect remote IP cameras to existing NVR’s / DVR’s - Supports up to 300Mbps
- Utilizes the 5.8Ghz Wi-Fi frequency, avoiding the congested 2.4Ghz bandwidth in use on most Wi-Fi today.
- Dual 14dBi antennas
- Supports the following operation modes: Bridge, Access Point, Router and Repeater
- Supports providing PoE power to a single IP camera attached to CPE
- Includes 48V PoE power injector which allows for powering CPE from up to 330ft. away
- LEDs provide information about system status and signal strength for alignment in Bridge mode
- Hardware Reset button
- Outdoor Rated down to -40°F
- Supports Pole, Wall or Rack Mounting
Specifications
| Description | ANCP3005Q |
|---|---|
| CPU | Qualcomm AR9344 560Mhz CPU SE2576L PA Chipset – 64MB DDR2 / 16MB SPI |
| Antenna | Integrated Dual 14dBi Antennas |
| Wi-Fi Standards | IEEE802.11a/an |
| RF Output Power | 200mW (23dBm) |
| RF Sensitivity | -96dBm |
| RF Frequency | 802.11a/n: 5.180Ghz – 5.825Ghz |
| Bandwidth | 300Mbps |
| Physical Ports | 1 x 10/100 Mbps WAN Ethernet Port 1 x 10/100 Mbps LAN Ethernet Port 1 x Toggle switch for PoE output for IPC 1 x Reset Button |
| LED Indicators | Power / WAN / LAN / Wi-Fi Level Signal Strength |
| Power | PoE 802.3at/af Adapter: 48V PoE Power Adapter |
| Power consumption | <8W |
| Installation Methods | Pole Mounting, Wall Mounting or Rack Mounting |
| Product Dimensions | 10.2” x 3.1” x 2.1” (262mm x 80mm x 53mm) |
| Net weight | 0.7lbs |
| Working Environment | -40˚F ~ 131˚F / 10% ~ 90% RH, Non-condensing |
| Storage Environment | -58˚F ~ 167˚F / 5% ~ 90% RH, Non-condensing |
Contents
| • CPE | • Power Cord |
| • Stainless Cable tie | • Installation Guide |
